High-Definition Video Signal Slip Rings for High-End Consumer Electronics and Gaming Equipment

As a trailblazer in the realm of slip ring manufacturing with international renown, JINPAT holds an undeniable leading position. JINPAT has pioneered the integration of high-definition video signals into VR slip rings.With the continuous refinement of related industries, manufacturers of high-endgaming equipment and VR devices with integrated VR capabilities are emerging.This trend indicates a growing demand for slip rings that integrate high-definition video signals for future VR devices and high-end gamingequipment.

Presently, slip rings integrating HDMI or DP signals are primarily applied in high-end VR devices and gaming equipment. On the other hand, SDI high-definition video signals find more use in equipment within the realm of film and television production. Worth mentioning is that JINPAT has successfully developed slip rings capable of accommodating 12G-SDI high-definition signals. Concerning DP and HDMI high-definition video signal slip rings developed for VR, they support both DP1.1 and HDMI2.0 versions of high-definition signals, with efforts underway to develop slip rings for even higher versions of high-definition signals.

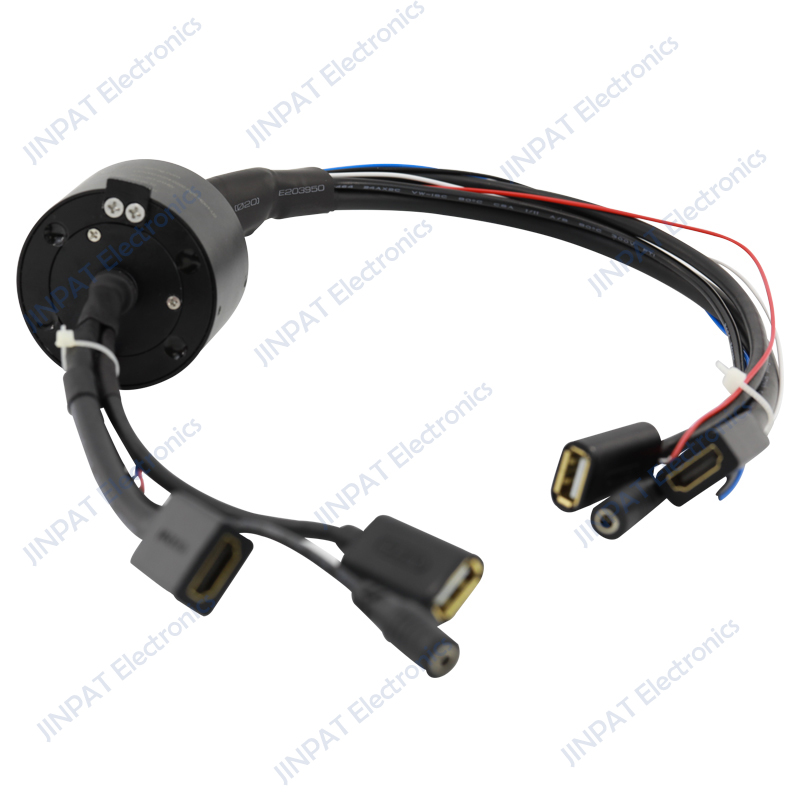

Existing head-mounted virtual reality displays utilize a wiring approach directly connected to PCs, televisions, or other multimedia devices.During usage, limitations on rotation angles due to cable twisting and similar issues unavoidably compromise the experience. In order to ensure uninterrupted data transmission during 360° high-speed rotation and maintain data integrity and transmission speed, JINPAT has developed a range of integrated VR slip rings that combine HDMI, USB, direct current power, and signal amplification.The high-definition video transmission capability of these VR slip rings can reach up to 2160X1080P@90HZ, providing error-free signals. Furthermore, the design ensures no interference between high-definition and USB signals, thus guaranteeing lossless signal transmission. This solution empowers users to achieve unrestricted 360° rotation while using head-mounted virtual reality displays, significantly enhancing the user experience.

From the perspective of application terminals, SDI slip rings are primarily used for high-definition video signal transmission in productivity equipment, while slip rings integrating DP and HDMI signals are predominantly installed in various consumer-grade devices, thus falling under the category of consumer-grade high-definition slip rings. Whether employed in productivity equipment as SDI high-definition video signal slip rings or in consumer-gradedevices as DP and HDMI high-definition video signal slip rings, JINPAT consistently maintains a leading position in the industry. Customers are welcome to inquire about customized slip ring solutions, as JINPAT is committed to providing satisfactory solutions through its robust technical capabilities.
