Radar slip rings play a crucial role in radar systems, serving as key components that guide the transmission and reception of radar signals, enabling target detection and localization. As a professional slip ring manufacturer, JINPAT’s small aperture hollow shaft slip rings are widely used in military radar slip ring applications.
JINPAT’s small aperture radar slip rings are characterized by their compact size, small diameter, and volume, making them highly suitable for small rotating military equipment, where they are used for energy and signal transmission. In platforms like military vehicles and small to medium-sized aircraft, radar systems are typically limited in size,power, and transmission range, necessitating appropriately sized slip rings.For such radar systems, the required slip ring structures are relatively simple, with small aperture through-hole slip rings being the primary choice.

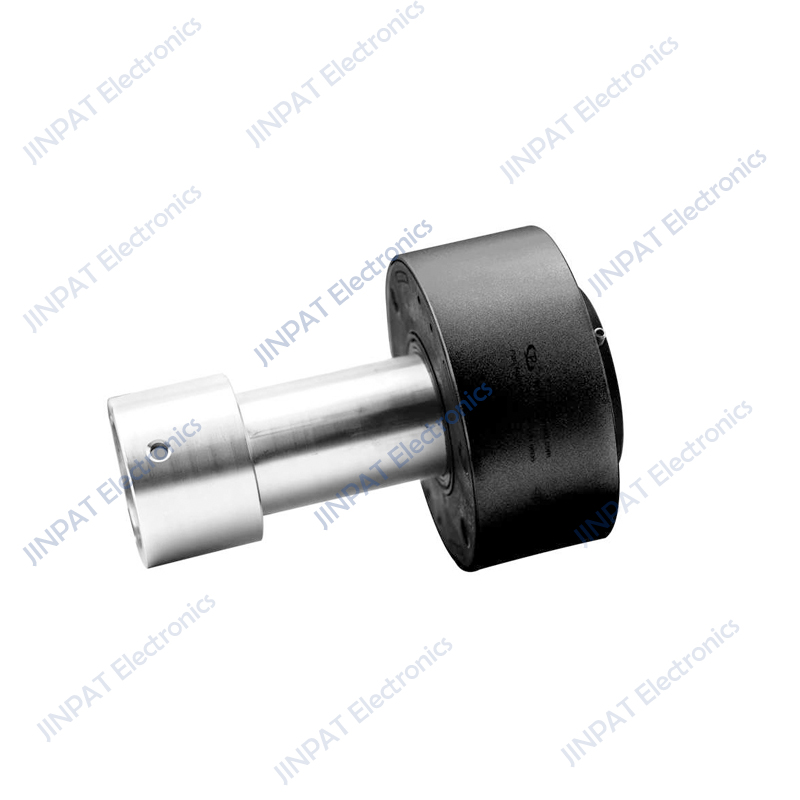

Representing the excellence in small aperture radar slip ring products, JINPAT offers the LPT012/015/038/039 series slip rings. The LPT012A-0701-E2 and LPT015-0610-E3 are the smallest aperture products in this series, featuring simple integrated slip rings comprising multiple power rings and one Ethernet channel. These slip rings are commonly used in ship borne collision avoidance radar, airborne radar, vehicle navigation radar, short-range detection, and some small target indication radar scenarios.
The LPT038/039 series slip rings are similar to the LPT012/015 series in application platforms but offer slightly enhanced functionality. In addition to having more power rings than the previous series, they also support a greater variety of signal types, resulting in more signal rings. Representative models of these two aperture slip rings are the LPT038-1205-12S and LPT039-0605-16S-E2. The LPT038 adopts standard slip ring molds, providing a significant advantage in delivery speed.
Radar slip rings play a critical role in various application fields and continuously undergo improvement and optimization to meet diverse requirements in different scenarios. JINPAT is committed to developing various radar slip rings to cater to the needs of different industries while consistently enhancing product performance and reliability. JINPAT is dedicated to offering high-quality radar slip ring solutions and contributing to the advancement of radar technology.
