Number of circuits：16CKT
Insulation resistance：≥500MΩ@500VDC ≥100MΩ@300VDC (signal)
Voltage：24V

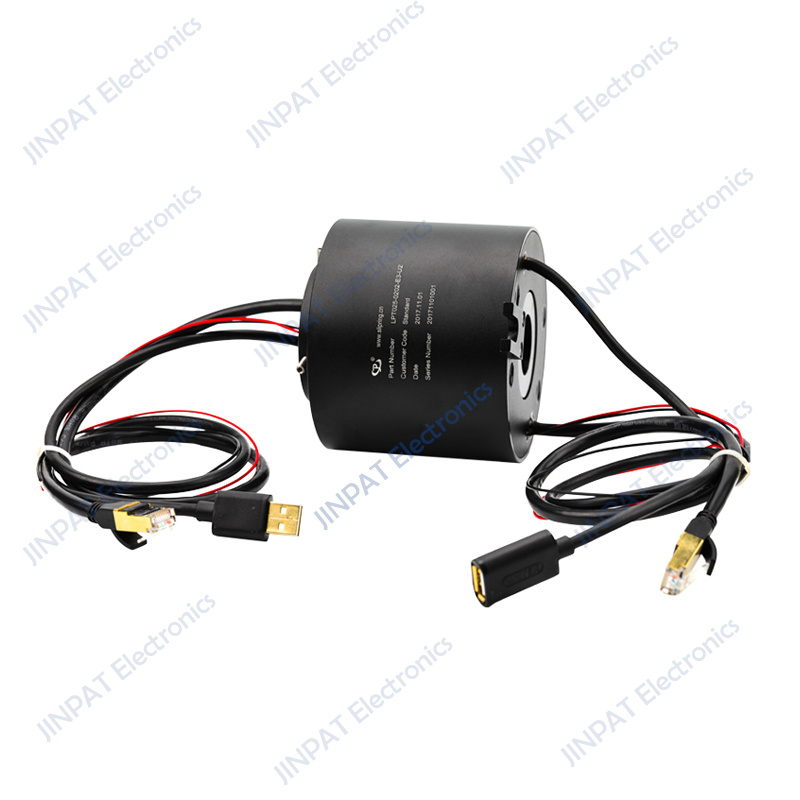

LPT025-0202-E3-U2（JP13-041-04）
Industrial Ethernet is an Ethernet technology used in the industrial field. This technology is compatible with commercial Ethernet, IEEE 802.3 standard. However, the slip ring products for these two fields are completely different. In the development of Industrial Ethernet slip rings, many factors are considered to meet the requirements of the industry: Materials, product applicability, timeliness, interoperability, reliability, interference suppression performance and intrinsic safety, etc.
Industrial Ethernet slip ring is a slip ring specially designed for industrial Ethernet transmission. JINPAT Industrial Ethernet Slip Ring supports various protocols such as Sercos III, Powerlink, ProfiNet, EtherCAT, Ethernet/IP and Modbus/TCP, etc. It is an optimal solution for transmitting Industrial Ethernet between system components.
Advantages of the JINPAT Industrial Ethernet Slip Ring:
High transmission speed of up to 1000Mbps.
Can integrate many signal channels. Maximum channel capacity: 8 Gigabit Ethernet channels and 12 100M Ethernet channels.
Hybrid transmission of power signals and other complex signals.
Various slip ring models. Gigabit Ethernet slip rings optional with inner diameter from 0 to 120 mm. 100M Ethernet slip rings optional with inner diameters from 0 to 200 mm.
Exquisite contact materials ensure low electrical noise and very long life.
Various types of connectors are available for selection.
| Electronic & Electrical | Mechanical | |||
| Circuits | Total | 16 CKT | Working speed | 0~300rpm |
| Details | 2X2A / 1Group 1000Mbps Ethernet 1Group USB2.0 |
Inner diameter | φ25.4mm | |
| Rated voltage | 24VAC/DC | Contact material | Precious metal | |
| Dielectric Strength | ≥500VAC@50Hz(P) /300VAC@50Hz(S) |
Housing Material | Aluminum alloy | |
| Insulation resistance | ≥500MΩ@500VDC(P) / ≥100MΩ@300VDC(S) | Lead wire length | Stator: 1000mm
Rotor: 1000mm |
|
| Environment | Remarks | |||
| Working temperature | -20°C~+60° | Application | / | |
| Working Humidity | ≤60%RH | Others | / | |
| IP | IP50 | Note: “P” stands for power, “S” stands for signal. | ||
LPT025-0202-E3-U2（JP13-041-04） -outline drawing
