Number of circuits：40CKT
Current：9×800A+1×PE+ 30×20A+4×fluid
Insulation resistance：≥500MΩ@1000VDC ≥500MΩ@500VDC (signal)
Voltage：440VAC/230V
LPA000-09800-01PE-3020-04L – Floating Crane
Features
1、Large size, outer configuration 1.3*1.3*3M
2、Super long service life, regular maintenance.
3、Excellent transmission performance, smooth operation, good isolation with hydraulic channel and pneumatic channel.
Advantages
1、Simultaneous rotary transmission of high power, signals, gas and liquid.
2、Uses imported graphite brush with stable performance.
3、Large pipe diameter high temperature rotary transmission, can bear high temperature up to 150℃, 65mm pipe diameter.
| Electrical & Electronic | Mechanical | Environmentally friendly | |||
| Number of
Circuits |
40CKT | Rotation speed | 0~5rpm | Temperature | -20°C~+50°C |
| Current | 9×800A+1×PE+
30×20A+4×liquid |
Contact
Material |
Precious metal/
Copper-graphite |
Humidity | ≤95%RH |
| Voltage | 440VAC/230V | Housing
Material |
Q235 | Protection class | IP22 |
|
Penetration force strength |
≥2500VAC@60Hz
≥500VAC@60Hz (signal) |
Wire type | 150mm²Rubber wire/
AWG12# Teflon |
Others | |
| Insulation
Resistance |
≥500MΩ@1000VDC
≥500MΩ@500VDC (signal) |
Length of cable | / | Lifetime | Can be customized |

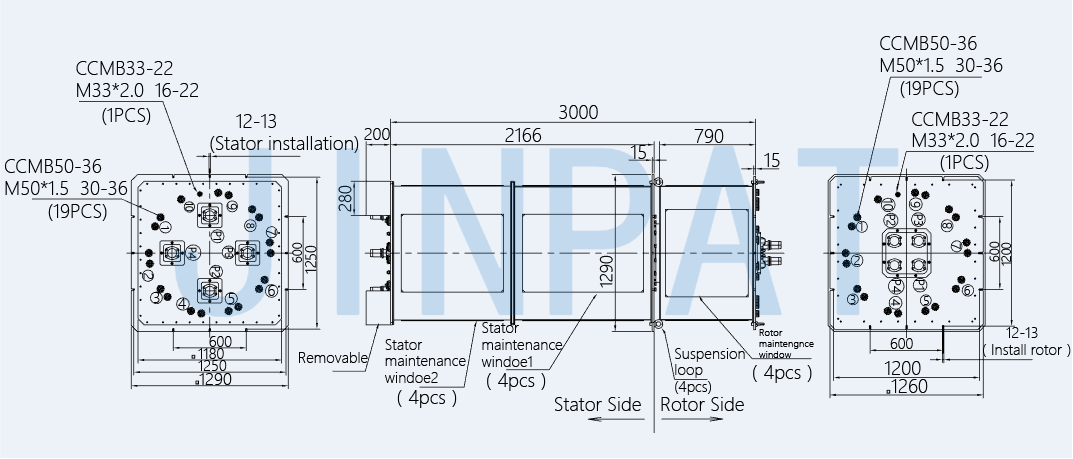

Outline drawings
