FPC Slip Rings

Customer Satisfied

Attached Document

Number of circuits:11CKT

Current rating:9 circuits* signal 1A/ 2 circuits * 2A (customized).

Insulation resistance:≥10MΩ@100VDC(S)

Wire length:Rotor: 33+2/-0mm Stator: 180/150±2 mm (customized).

Voltage:48VAC/DC

Wire size:10 million (customized).

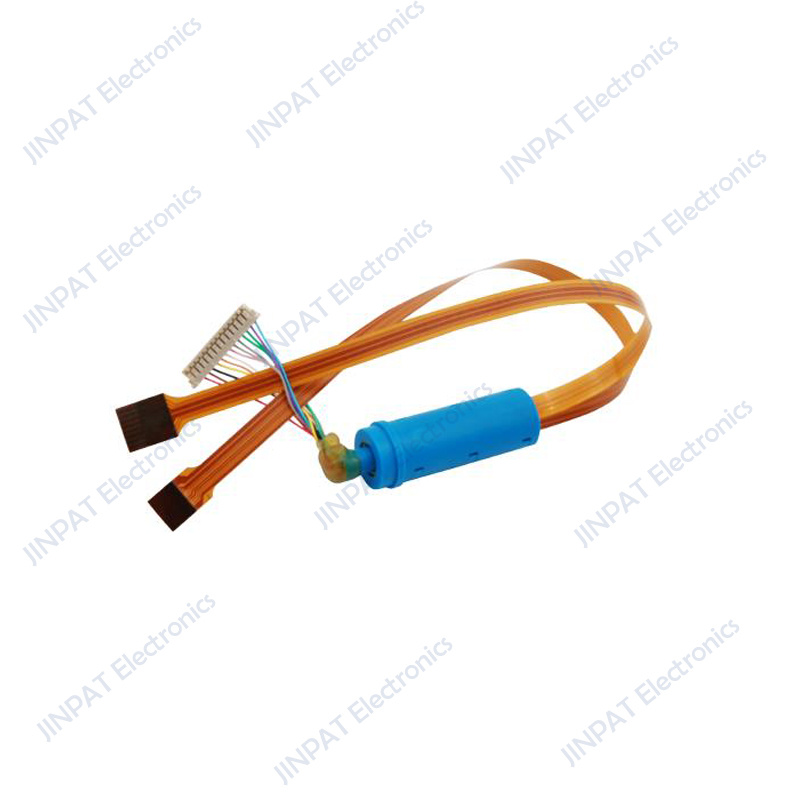

LPM-18C-0202-09S – Photographic device

Features

1、Small power current transmission, analog and data signal.

2、Low torsional force and reliable transmission.

3、Industry leading military high standard surface treatment technology and precise and dense internal structure.

4、Gold-to-gold contact ensures stability and durability.

5、FPC connection mode has excellent folding resistance and thinner thickness.

Advantages

1、FPC slip ring is a highly reliable, optimal and flexible connection mode, featuring high wiring density,

light weight and equal wiring diameter, and is suitable for many products such as cell phones, notebooks, PDA, digital cameras, LCM and so on.

Electrical and Electronic		Mechanical		Environmental
Channel number	11CKT	Working speed	0~60rpm	Work temperature	-20°C~+60°C
work current	9 circuits* signal 1A/ 2 circuits * 2A (customized)	Contact Material	Precious metal	Humidity in operation	≤60%RH
Operating voltage	48VAC/DC	Housing Material	Engineering plastic	IP Protection class	IP40
Resistant voltage Strength	≥100VAC@50Hz(S)	Torque	≤2.5mNm	Others
Insulation resistance	≥10MΩ@100VDC(S)	Conductor Specification	AWG30# Teflon conductor / FPC flat cable (customized)	Lifetime	10 million (customer specific)
Dynmaic Resistance Fluctuation value	≤35mΩ (1 mΩ at minimum)	Wire length	Rotor: 33+2/-0mm Stator: 180/150±2 mm (customized)	Lifetime	10 million (customer specific)

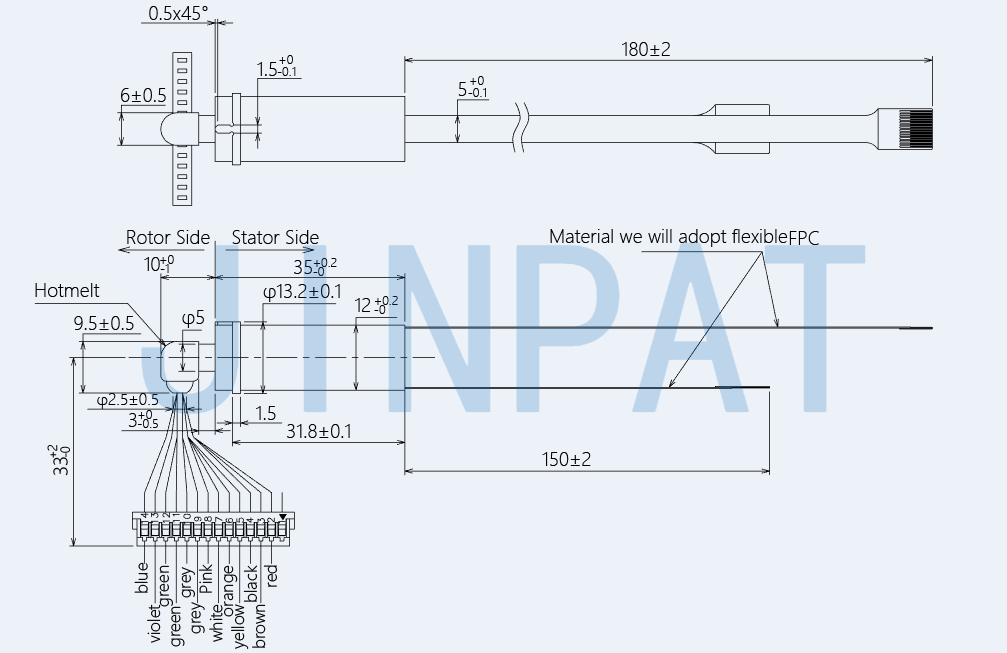

Outline drawings
