Number of circuits:8CKT
Current rating:2A
Insulation resistance:≥600MΩ@200VDC
Wire length:rotor: 250±5mm stator: 250±5mm
Voltage:40VAC/DC

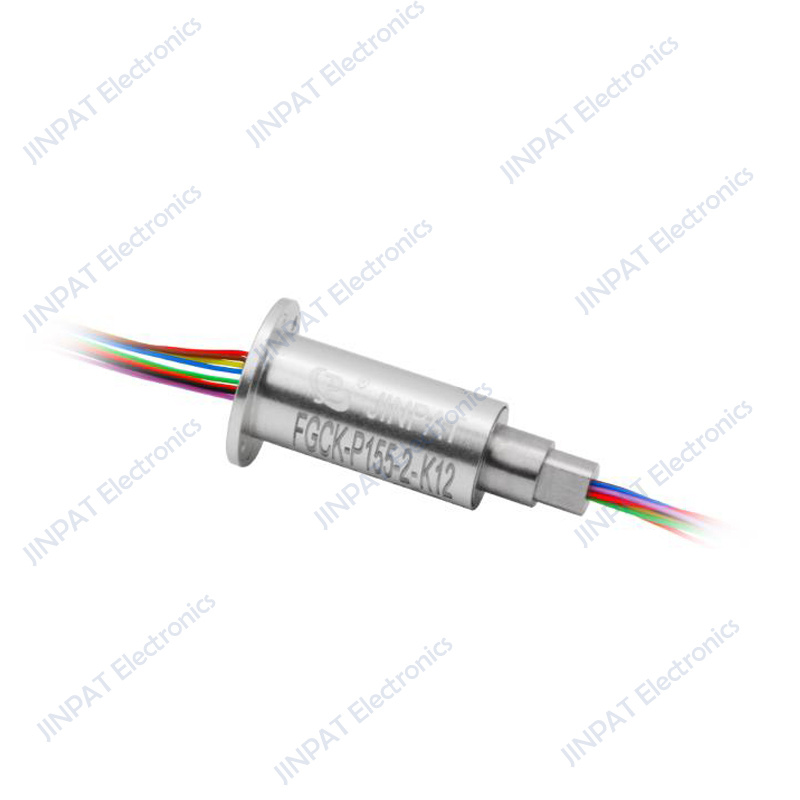

FGCK-P155-2-K12 – testing / aviation / oil exploration.
Features
1、High speed achieved 0~10000/rpm.
2、Achieve 18000/rpm immediately.
3、High temperature application up to 210 ° C.
Advantages
1、Use special molding process and extra wear-resistant materials.
2、Solve the influence of vibration and temperature changes on the signal at high speed
3、Simultaneously meet high vibration performance indicators in harsh environments
| Electrical and electronic | Mechanical | Environmental conditions | |||
| Number of circuits | 8CKT | Rotation speed | 0~18000 rpm | Temperature | -55℃~+210℃ |
| Current | 2A | Contact material | Gold on gold | Humidity | ≤60%RH |
| Voltage | 40VAC/DC | Housing material | Alumina white | Protection class | IP40 |
| Dielectric strength | ≥500VAC@400Hz | Torque | ≤0.1N*M | Others | |
| Insulation resistance | ≥600MΩ@200VDC | Wire type | AWG28# | Lifetime | Can be customized |
| Electrical noise | ≤10mΩ | Wire length | Rotor: 250±5mm
Stator: 250±5mm |
||

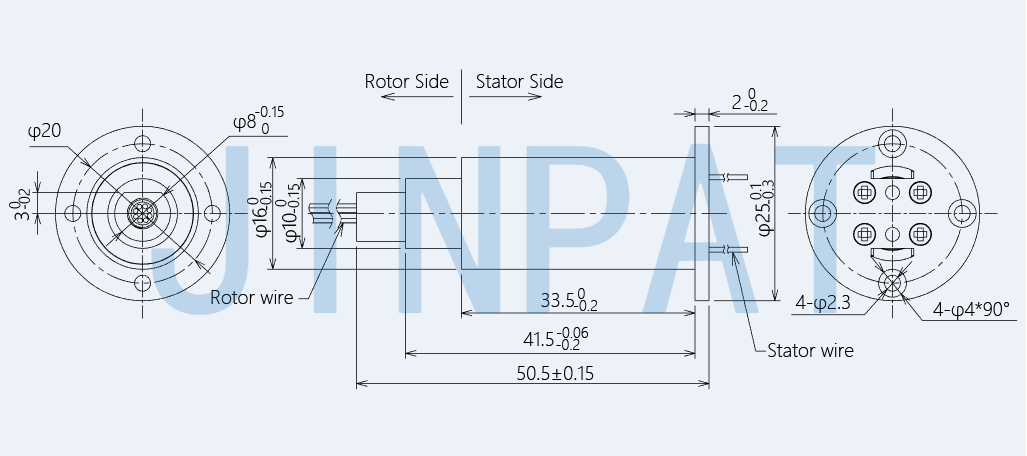

Outline drawings
