Number of circuits:10 CKT

Current:1A

Voltage:0~20VDC

Contact material:gold on gold

Dielectric strength:≥500VAC@50Hz.

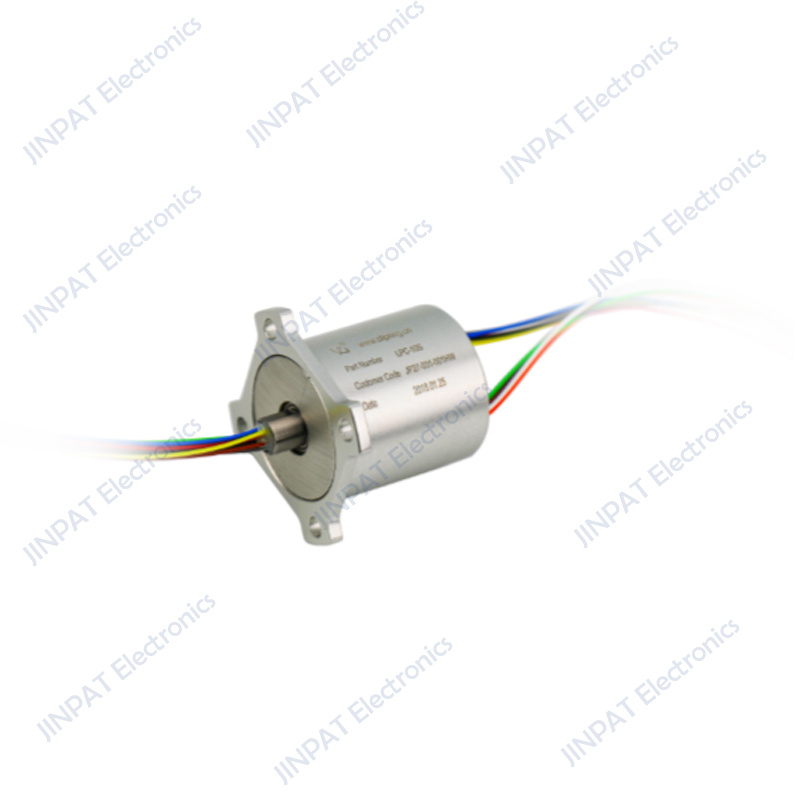

LPC-10S- Military equipment / laboratories and other special equipment.

Features

1、Long life slip ring can achieve a service life of more than 270 million rpm under the test conditions of 5000/rpm.

2、Maintenance-free during the whole life cycle.

Advantages

1、 High and low temperature resistance.

2、 High vibration resistance, high impact resistance.

3、 Insulation is greater than 60db, signal transmission loss is extremely low

4、 Contact area mirror inlet technology reaches the world’s leading level.

Electrical & Electronics		Mechanical		Environmental
Number of Circuits	10 CKT	Rotation speed	0~1200 rpm	Temperature	-10℃~+80℃
Current	1A	Contact Material	Gold-on-gold	Humidity	≤60%RH
Voltage	0~20VDC	Housing Material	Aluminum alloy	Protection class	IP40
Dielectric Strength	≥500VAC@50Hz	Torque	/	Others
Insulation Resistance	≥100MΩ@500VDC	Wire type	AWG28#	Lifetime	270 million revolutions per minute
Dynamic contact Resistance	≤30mΩ	Wire length	Rotor: 250±5mm Stator: 250±5mm	Lifetime	270 million revolutions per minute

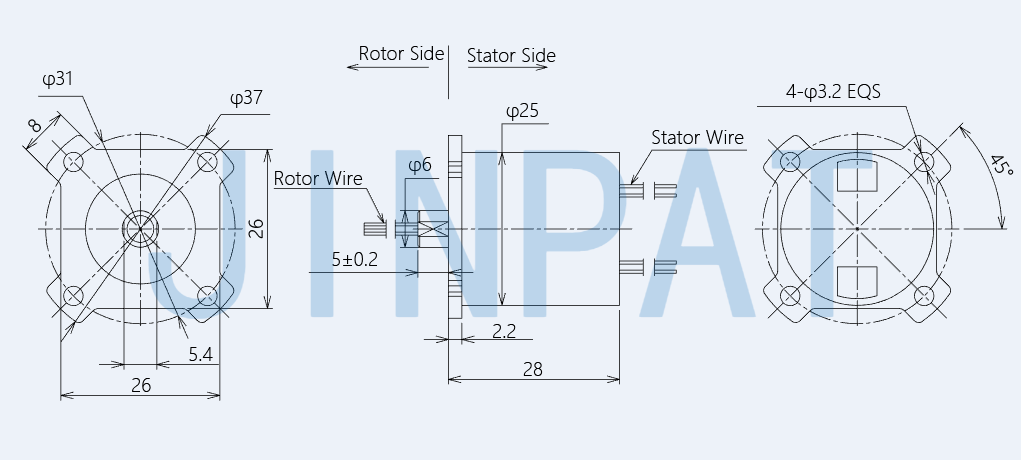

Outline drawings
