Number of Circuits 54CKT
Voltage 690VAC/220VAC/24VDC

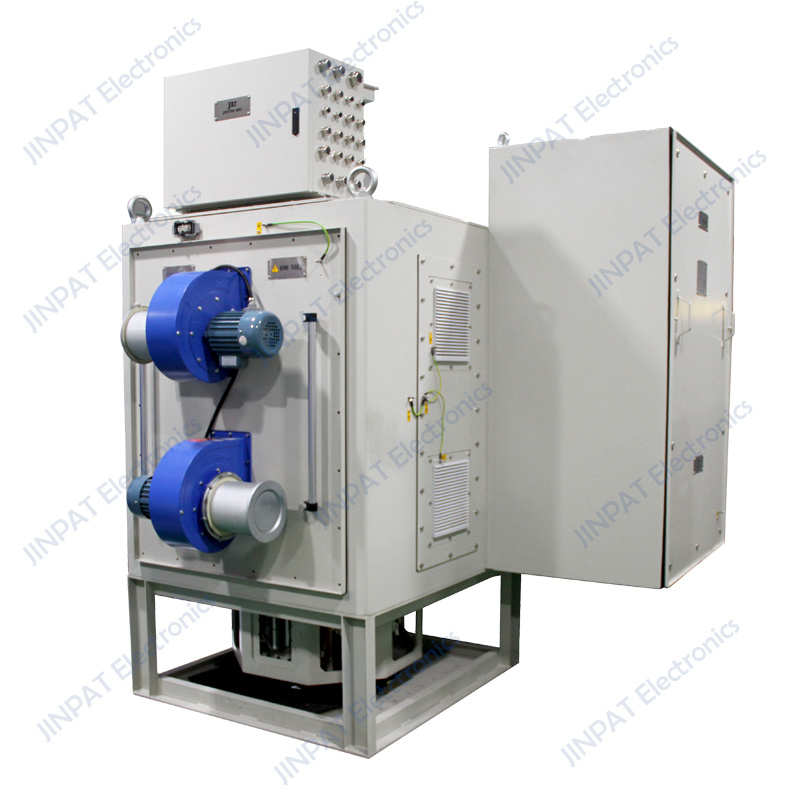

This is JINPAT’s latest slip ring for podded propeller. This custom slip ring allows integrated transmission of power, signals, liquid and gas.
With case design and special housing, the slip ring demonstrates fine resistance against salt spray, oil mist and corrosion, etc. Therefore,
JINPAT podded propeller slip ring is able to provide reliable and stable service to the podded propeller under complex applied environment.
| Electronic & Electruc | Mechanical | |||
| Circuits | Total | 54CKT | Working Speed | 0~2RPM |
| Detail | 5*1000A+1*PE+50*signal | A hole diameter | / | |
| Rating Voltage | 690VAC/220VAC/24VDC | Contact Material | High-end Copper Graphite/
Precious Metal |
|
| Dielectric Strength | 2500VAC@50Hz(P) 300VAC@50Hz(S) |
Housing | Q235 Spray Coating(Color to be determined) | |
| Insulation Resistance | ≥500MΩ@1000VDC(P)
≥10MΩ250VDC(S) |
installation | Vertical Installation | |
| Environment | Remarks | |||
| Working Temperature | -20°C~+45°C | Application | Ship Podded Propeller | |
| Working Humidity | ≥95%RH | |||
| IP | IP65(without ventilator) IP54(with ventilator) |
Other | / | |
