Number of Circuits 7
Lead Size Φ26/Φ38*119
Wavelength range 850-1550
Insertion loss ＜4dB
Insertion loss ripple ＜2dB
Optional Single can be customized,housing material and driving connector are optional

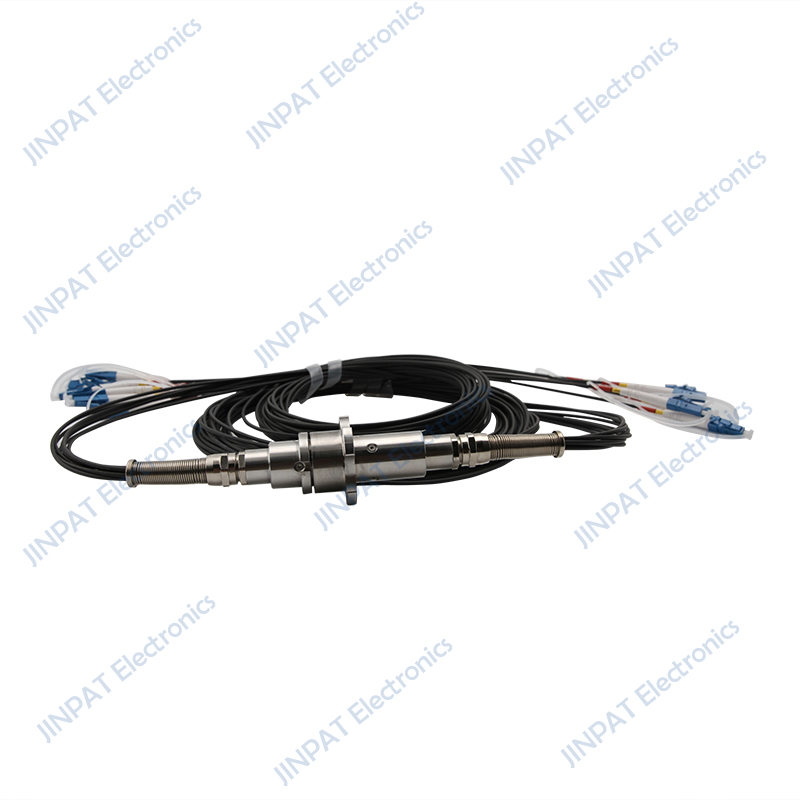

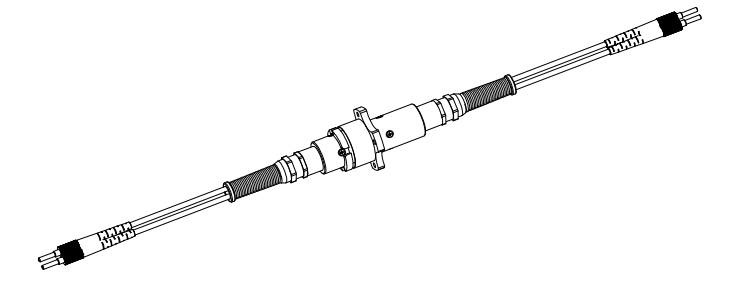

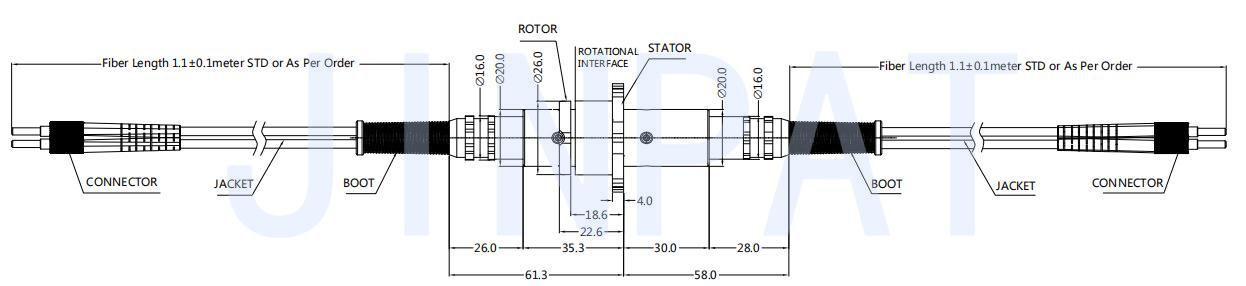

LPFO optical slip rings are also known as fiber optic rotary joints, optical rotatory connector. The optical slip ring adopts optical fiber as media. It offers the best solution to transmit great capacity data and signals. The optical slip ring can be integrated with traditional electrical slip rings. The hybrid slip ring model is able to transmit power, signals and high speed data.
| Specifications | |||
| Fiber types | SM or MM | Jacket types | 2.0mm(Kevlar/TPU or armor) |
| Channel number | 7 | Connector types | FC/SC/ST/LC(PC or APC) |
| Wavelength range | SM:1310-1550nm
MM:850/1300nm |
Estimated life cycle | ＞100 million revolutions |
| Insertion loss | ＜4dB | Vibration | MIL-STD-167-1A |
| Insertion loss ripple | ＜2dB | Mechanical shock | MIL-STD-810G |
| Return loss | SM:≥45dB MM:≥30dB | IP rating | IP65 or IP67 |
| Crosstalk | ≥50dB | Max Optical power | 23dBm |
| Maximum speed | 300rpm | Package style | Pigtails on both ends |
| Working temperature | -20~+65℃(Industrial grade)
-50～+80℃ (Military grade) |
Weight, approx | 200g（No tail cable andconnection included） |
| Storage temperature | -55~+85℃ | ||
