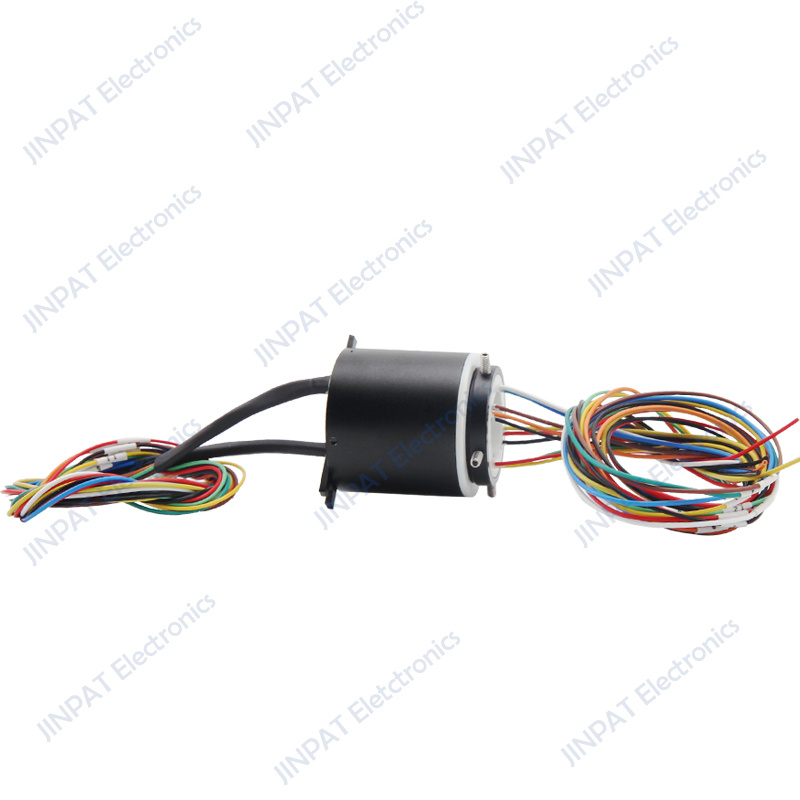

A slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. A slip ring is also called a rotary electrical interface, collector, swivel or a commutation. A slip ring can improve system performance by simplifying operations and eliminating damage-prone wires dangling from movable joints
Feature:
* 1~12 circuits optional；
* 60A max；
* 1000RPM Max, lifecyle 50 million revolutions
* Support Ethernet, USB2.0, analog vedio, CANbus, serial communication etc.
| Electronic & Electruc | Mechanical | |||
| Circuits | Total | 12CKT | Working Speed | 0~1000rpm |
| Detail | Inner Diameter | Φ20mm | ||
| Rating Voltage | 500VAC/dc | Contact Material | Fiber Brush | |
| Dielectric Strength | 1500VAC@60Hz | Housing Material | Fibre-reinforced plastics | |
| Insulation Resistance | ≥1000MΩ@500VDC | Lead Wire Length | Stator: 1m
Rotor: 1m |
|
| Environment | Remarks | |||
| Working Temperature | -40°C~+80°C | Application | / | |
| Working Humidity | ≤60%RH | Other | / | |
| IP | IP54(Horizontal installation) | |||

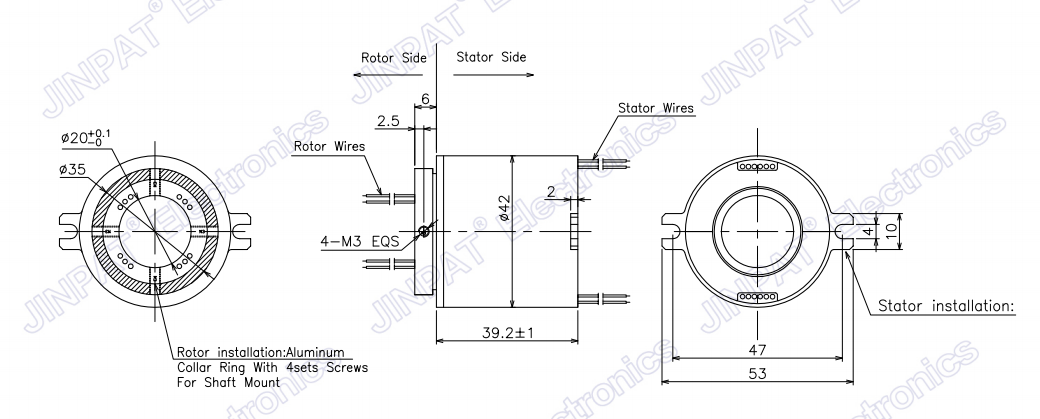

LPT020-0803-04S-Outline Drawing
