Turntable Slip Rings

Customer Satisfied

Attached Document

Number of circuits：135CKT

Current：4x15A+22x10A+13x5A+ 72x2A+2E2+3x1553B

Insulation resistance：≥500MΩ@500VDC ≥100MΩ@300VDC (signal)

Voltage：400VAC/48VDC

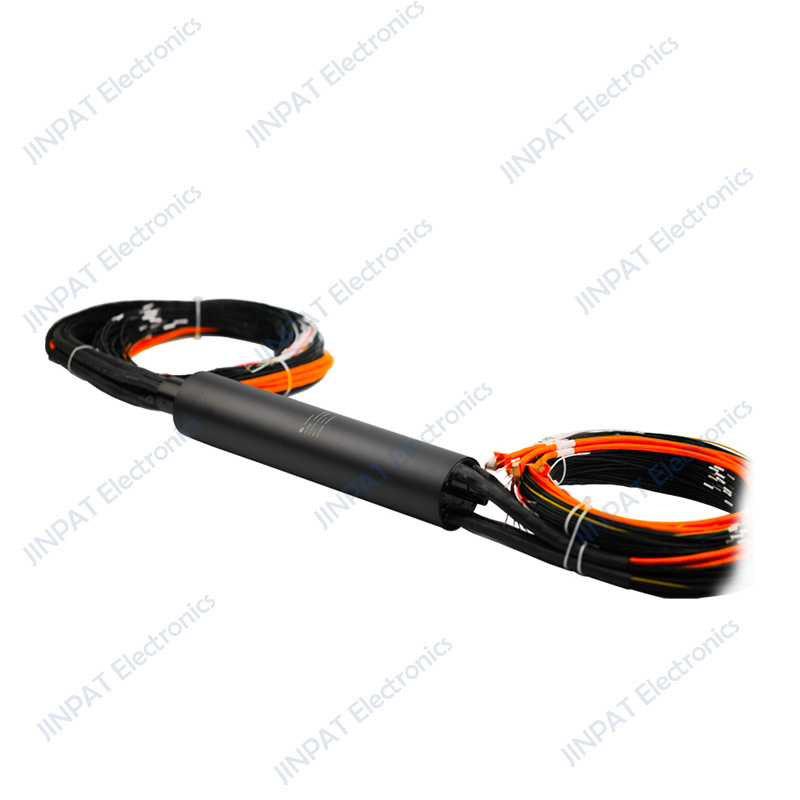

LPT004-073-0415-2210-1305-7202-02E2-03S – 2D Simulation Turntable

Features

1、Simultaneous transmission of power and signal.

2、Gold-to-gold contact for signal transmission

3、Long service life, maintenance free.

4、Compact structure, main shaft is equipped with 4mm gas channel.

Advantages

1、Possibility to integrate up to 135 channels.

2、Module structure, guarantees the consistency of products.

3、Compact structure, small size

4、Use of special soft wires.

Electrical & Electronics		Mechanical		Environmentally friendly
Number of circuits	135CKT	Rotation speed	0~300rpm	Temperature	-20°C~+60°C
Current	4x15A+22x10A+13x5A+ 72x2A+2E2+3x1553B	Material of contacts	Precious metal/ Gold to gold	Humidity	≤60%RH
Voltage	400VAC/48VDC	Housing material	Aluminum alloy	Protection class	IP44
Penetration force strength	≥1000VAC@50Hz ≥300VAC@50Hz (signal)	Wire type	AWG14/17/22 /26# 2-wire shielded twisted pair cable/ 1553B/network cable	Other
Insulation resistance	≥500MΩ@500VDC ≥100MΩ@300VDC (signal)	Length of the cable	Rotor side: 1.5 m Stator side: 1.5 m	Lifetime	Can be adjusted
Electrical noise	≤10mΩ(at 50rmp).	Length of the cable	Rotor side: 1.5 m Stator side: 1.5 m	Lifetime	Can be adjusted

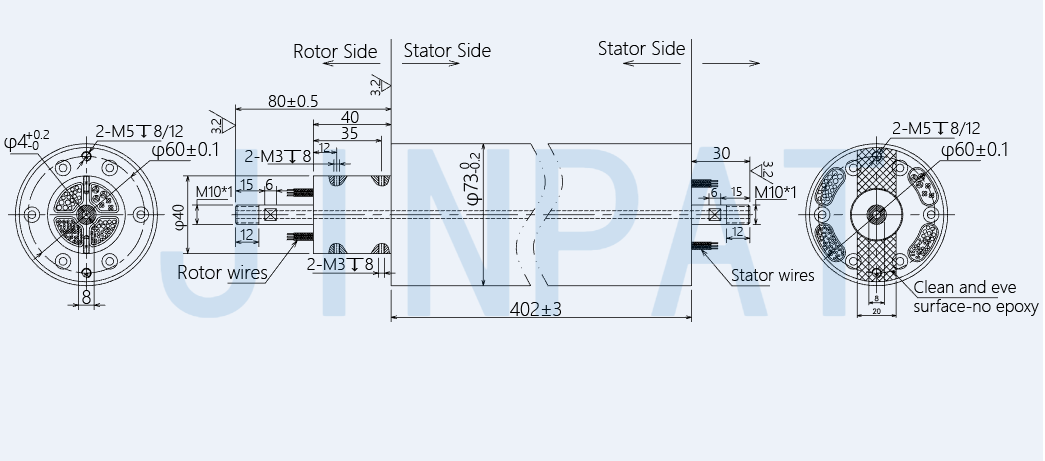

Outline drawings
