Number of circuits：40CKT

Insulation resistance：≥10MΩ@100VDC

Voltage：0~48VAC/DC

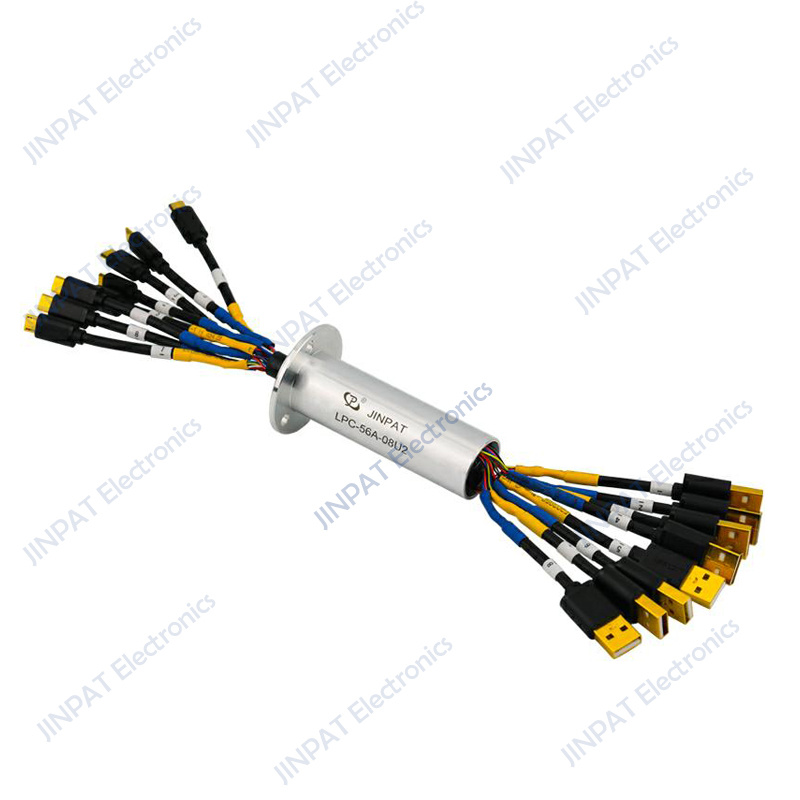

USB Slip Rings-2.0

USB was developed to standardize the connection of peripheral devices to personal computers. It has largely replaced interfaces such as serial and parallel ports, and has become commonplace in a wide range of communication devices such as PCs and portable devices. USB is also gradually finding its way into machine vision, data acquisition, photographic equipment, digital television and recreational equipment, etc.

JINPAT USB slip rings are specially designed for USB signal transmission. JINPAT USB slip rings have enough signal channels and stable signal transmission. This series includes slip rings with USB 2.0 connector and with USB 3.0 connector. JINPAT USB slip ring is an optimal solution for transferring large amount of data at high speed between electrical components.

JINPAT USB slip rings advantages:
High transmission rate, USB 3.0 theoretical transmission rate up to 5.0Gbps, measured transmission rate＞2.0Gbps.
Electrical transmission and electro-optical transmission optional
Can integrate many signal channels. Maximum channel capacity: 2 USB3.0 channels and 12 USB2.0 channels.
Exquisite contact materials ensure low electrical noise and very long life.
Various types of connectors are available for selection.

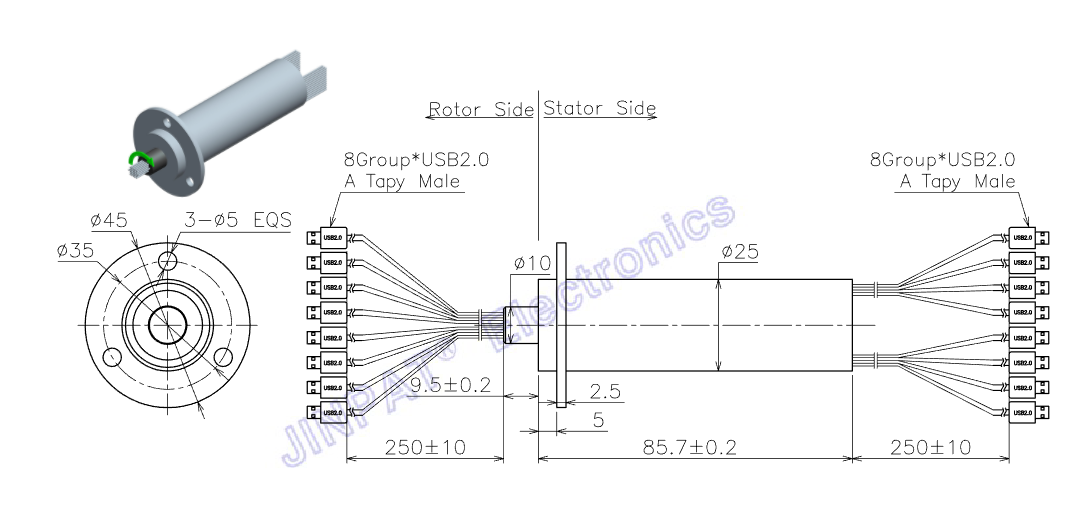

USB Slip Rings-2.0 -Overview drawing
